VSD PM Variable Speed Screw Compressor 37kw 50 Hp Rotary Screw Air Compressor

Brand Name : DHH

Model Number : SEM-50A

Certification : CE/ISO9001

Place of Origin : Jiangsu, China

MOQ : 1set

Price : Negotiate

Payment Terms : T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Supply Ability : 600set/months

Delivery Time : 25days

Packaging Details : Plywood case

Product name : VSD Screw Air Compressor

Type : Screw

Configuration : Stationary configuration

Power Source : AC POWER Source

Lubrication Style : Lubricated style

Voltage : 380V/220V/110V(can be customized)

Air delivery : 6.28m3/min 222cfm

Motor power : 50hp 37KW Permanent magnet motor

Keywords : Permanent Magnet Air Compressor

Warranty : 1 years

Working Pressure : 8 bar

Control : PLC control

Start way : Frequency conversion start way

Application : In General Industry

Dimension(L*W*H) : 1250mm*1040mm*1330mm

Weight : 460 kilograms

Contact Now

37kw 50 Hp Screw Air Compressor VSD Rotary PM Variable Speed Screw Compressor

Screw Air Compressor Products fetures

Low noise
Stable performance
Energy efficient
Convertible frequency

VSD PM Variable Speed Screw Compressor 37kw 50 Hp Rotary Screw Air Compressor

Screw Air Compressor's Technical parameter

Air delivery: 6.1 m3/min
Exhaust pressure: 0.8 MPa
Motor Power: 37 kW 50hp
Motor speed: 3600 r/min
Voltage frequency: 380V/50HZ
Motor protection class/insulation class: IP 23/F
Drive mode: Permanent magnet frequency conversion
Noise: ≤70±2 dB(A)
Cooling method: Air cooling
Lubricant oil quantity: 20L
Automatic start method: Frequency conversion start
Outlet size: G1 1/2"
Outlet compressed air temperature after cooling: Ambient temperature +12C°
Dimension:1250*1010*1250mm

Model	Air delivery (m3/min)	Power (kW)	Noise (DB)	Outlet diameter	Dimension(mm)			Weight (kg)
	0.8Mpa				Length	Width	Height
SEM-10A	1.01	7.5	65±2	RP3/4	862	662	832	125
SEM-20A	2.30	15	70±2	G3/4	1110	750	1010	236
SEM-30A	3.40	22	70±2	G1	1210	800	1160	301
SEM-50A	6.10	37	70±2	G1 1/2	1250	1010	1250	460

Screw Air Compressor Application Industry

Food Industry, Mining, Chemical Industry, Deep well operation, Textile industry, precision instrument, Sewage treatment, Glass industry, Biochemical, Electronicindustry.

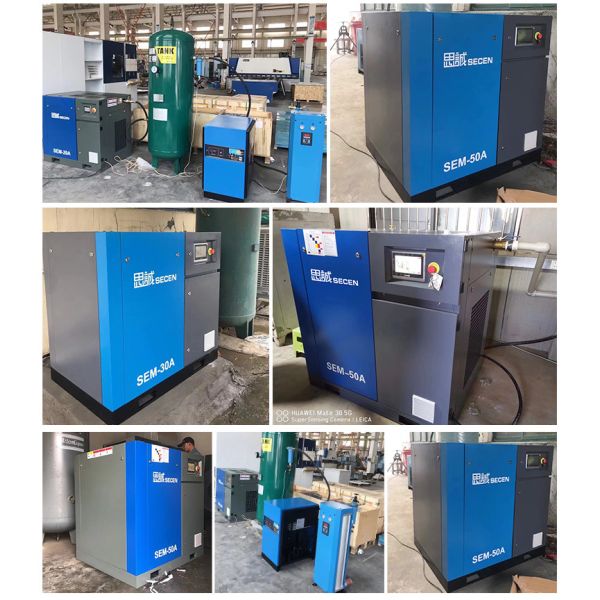

Screw Air Compressor Project Case

Company Profile

FAQ

1.Why customer choose us?
DHH COMPRESSOR JIANGSU CO.,LTD.with 26 years old history,we are specialized in Rotary Screw Air Compressor.Germany Standard and 13 years exporting experience help us won more than 30 loyal foreign agents.We warmly welcome your small trial order for quality or market test.

2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Qidong,China,with professional design team.Both OEM & ODM service can be accepted.

3.Where is your factory located? How can I visit there?
Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it’s about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!

4.What’s your delivery time?
380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days,if urgently order,pls contact our sales in advance.

5.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts and we can provide some spare parts of the machines.

6.How does your factory do regarding quality control?
Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.

7.How long could your air compressor be used?
Generally, more than 10 years.

8. What's payment term?
T/T,L/C,D/P,Western Union,Paypal,Credit Card,and etc.Also we could accept USD, RMB, Euro and other currency.

9.How about your customer service?
24 hours on-line service available.48 hours problem solved promise.
