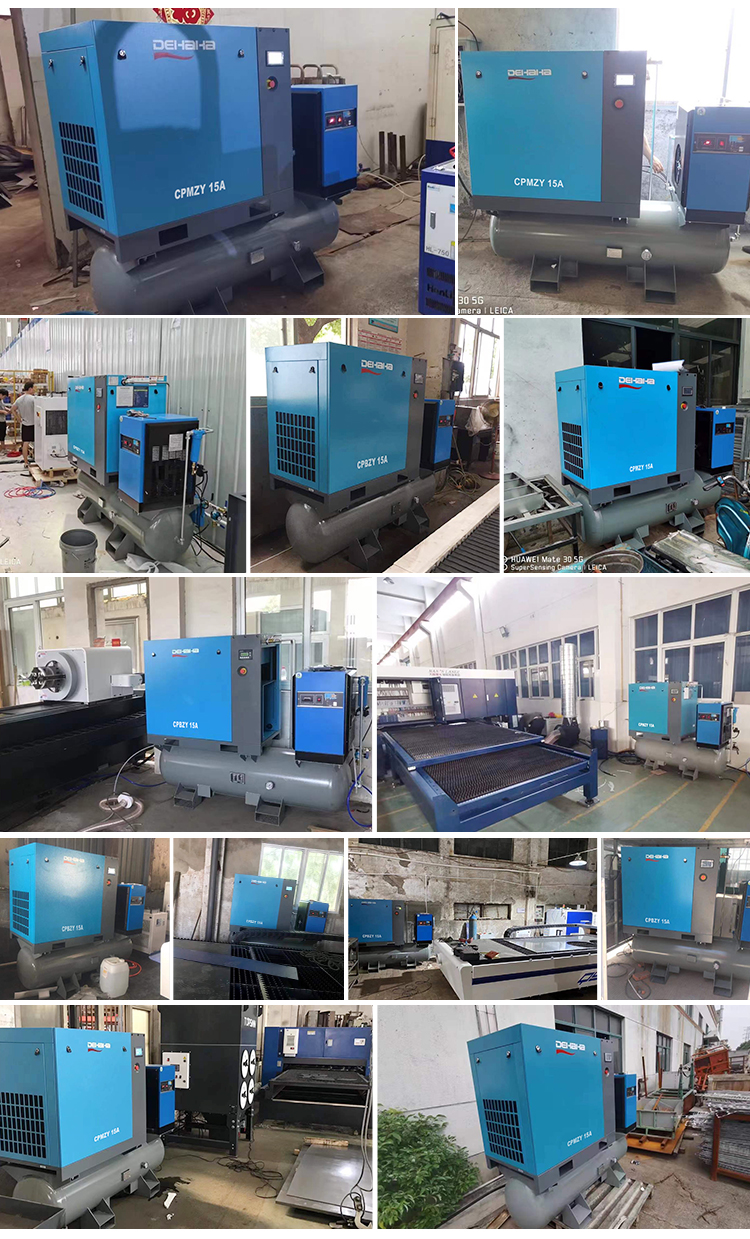

20hp15kW Combined Rotary Screw Air compressor Integrated Fiber Cutting Air-Compressors
Pressure differentiation of integrated screw air compressor
1. High pressure series
(1) The appearance is integrated, with air tank and air dryer
(2) The pressure range is 16bar (232psi) -30bar (435psi)
(3) Divided into fixed speed and permanent magnet frequency conversion series
2. Ordinary pressure series
(1) The appearance is integrated, with air tank and air dryer
(2) The pressure range is 7bar (101.5psi) -13bar (188.5psi)
(3) Divided into fixed speed and permanent magnet frequency conversion series
Advantages of integrated screw air compressor
1. Fewer parts and connections, reducing the possibility of unit failure and leakage. Reduce the integrated piping system and greatly reduce the pressure loss.
Directly eliminate the dry compressed air, fully guarantee the air quality of the user terminal.
2. High reliability, fewer parts and no wearing parts, so it runs reliably, has a long life, and the interval between overhauls can reach 40,000 to 80,000 hours.
3. Convenient operation and maintenance. The screw compressor has a high degree of automation, and the operator does not need to go through long professional training, and can realize unattended operation.
4. Strong adaptability. The screw compressor has the characteristics of forced air delivery, the volume flow is almost not affected by the exhaust pressure, and it can maintain high efficiency in a wide range. It is suitable for a variety of working conditions without any changes to the compressor structure.
Technical Parameters
| Model | CPBZY15 |
| Type | Fixed air-cooled twin-screw air compressor |
| Dimensions | 1882×790×1732mm |
| Installation method | Fixed installation without foundation |
| Rated displacement | 1.51m3/min |
| Rated exhaust pressure | 1.58Mpa |
| Exhaust oil content | ≤0.003 ppm |
| Exhaust pressure dew point | 2~10°C |
| Compression stages | Single-stage |
| Transfer method | belt |
| Compression oil consumption | 8L |
| Cooling method | Air cooling |
| Cooling air volume | 3500 m3/h |
| Ambient temperature | 0 ~ 45°C |
| Noise | ≤65 dB |
| Weight | 560kg |
Notes:1. A represents air-cooling type,W represents water-cooling type;
2. Working Environment temperature: -5ºC~45ºC;
3. Discharge temperature is less than ambient temperature +10ºC~15ºC;
4. Drive Mode: belt driven;
5. Startup Mode: direct start under 11kw, and above 11kw;
6. Work Power: 380V / 50HZ, 460V / 230V / 6KV and 10KV voltages can be made for customers;
7. F.A.D volume flow test is according to ASMC PTC9 or ISO1217 standard (GB/T3853)
About us
Dehaha Compressor was founded in 1996 with over 150 skilled employees and more than 25 R&D engineersteams ’ . We focus on the research & develop,manufacture and energy-saving solutions of screw air compressor to create value for customers and society.In 2018 our total sales volume approached 15 million US dollars.By over 23 years enhanced experiences of designing,producing and marketing,today our valued customers are over 130 countries.
Germany Standard and 13 years exporting experience help us won more than 50 loyal overseas agents.
Dehaha’s primary businesses focus in following key areas:
Oil-injected rotary screw compressors
Portable screw air compressors
Oil free air compressors
High pressure air compressors
Air treatment equipment
